Xiamen Sealand Development Co., Ltd.
5 Years
| Ask Lasest Price | |
| Brand Name : | SLD |
| Model Number : | SLD799J-10 |
| Certification : | ISO, CE |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 100 units per month |
| Delivery Time : | 25 working days |

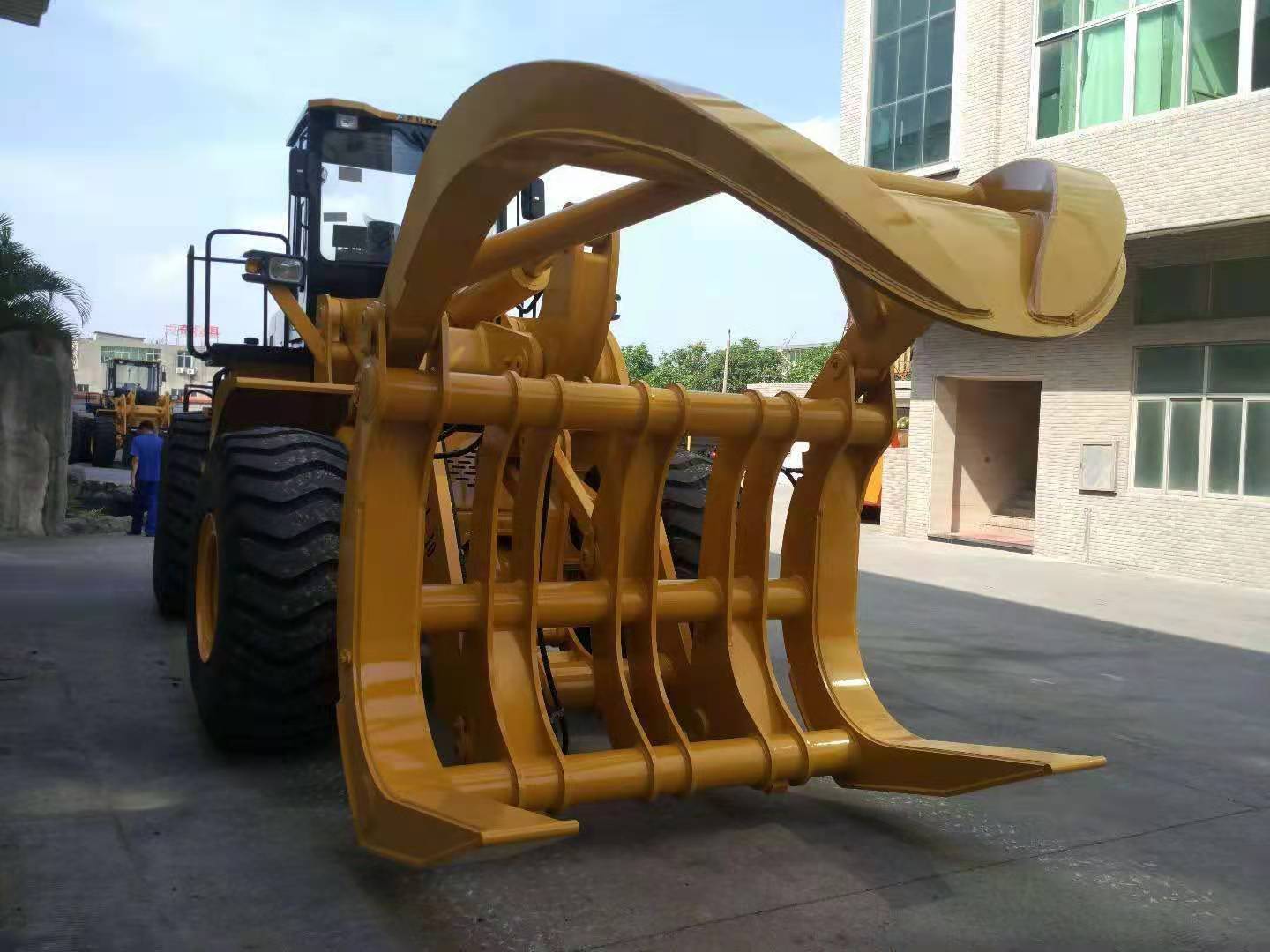

Lumber Loader Rated Load 10000kgs Special Wood Clamping Machine
1.Powerful engine: Weichai WD10G240E 178KW Engine, low rated rotate speed Engine,
strong power, energy conservation and environmental protection.
Cummins engine, Steyr engine, Shangchai engine is optional.
2.Brake systems: Four wheel double-line caliper disc braking system with a gas
container in the back to guarantee a more safety and reliable
operation.
3.Hydraulic systems: To adopt confluence of dual-pump confluence and diffluence
technology, rational use of engine power, reduce energy consumption
effectively. Independent transmission oil and hydraulic oil cooling
improve the hydraulic system stability.
4.Novel appearance and humanized design: Cab with broad view, large space and noise-isolation and
vibration absorber meets all kinds of operation. Radio with MP3
function and speaker, the Single -handle pilot control system,
electronic control gearshift to ensure easy operation and more
comfortable. ROPS/FOPS cab is optional.
The specifications of farm tractor front end loaders 10 ton atv wood grapple log loader with trailer
| Engine model | WD10G240E21 |
| Rated rotate speed | 2200r/nin |
| Max.torque | 920N.m |
| Max.dumping height | 3450mm |
| Rated load | 10,000 KG |
| NO.of shifts | Forward 4 For Reverse 2 |
| Driving speed | |
| Forward/ReverseⅠ | 0-6.5km/h |
| Forward/ReverseⅡ | 0-12.3km/h |
| Forward/ReverseⅢ | 0-24km/h |
| Forward/ReverseIV | 0-41km/h |
| Grade ability | ≥25° |
| Turning angle | 35°±1° |
| Overall length | 8400mm |
| Overall width | 3130mm |
| Overall height | 3550mm |
| Wheel base | 3550mm |
| Track base | 2510mm |
| Torque converter | Model: YJ375X3 ratio |
|
|
