Xiamen Sealand Development Co., Ltd.
5 Years
| Ask Lasest Price | |
| Brand Name : | SLD |
| Model Number : | FD25 |
| Certification : | ISO, CE |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300 units per month |
| Delivery Time : | 15 working days |

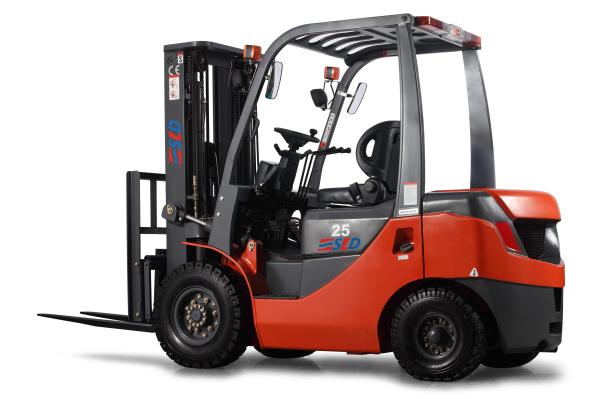

FD25 Diesel Forklift Truck 2.5 Tons Full Free Lift Triplex Mast Lifting Height 4500mm ISUZU Engine
Standard configuration: Japan ISUZU C240PKJ engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.
Options: Chinese engine or Yanmar engine, solid tires, full cabin with A/C, triplex mast higher lifting height etc.
2.0Ton 2.5 Ton Diesel Forklift
All forklift are with strong Power System.with reliable power accessories. All accessories like engine, gear box are support by world famous brand, with high quality, reliable after-sales.We strictly follow the environmental requirement, all engines match the China Ⅲ or even higher emission standards.And forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.
Whole perspective mast and backrest, super good view,high strength overhead guard,high place security combination lamp,neutral security features,parking brake,fork lock function(optional),all for safety.
Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.
| General | ||||
| Model | FD20 | FD25 | ||
| Power Type | Diesel | Diesel | ||
| Load Capacity | kg | 2000 | 2500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tyre | 6.00-9-10PR | 6.00-9-10PR | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070*120*40 | 1070*120*40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 | |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 | |
| Length to face of fork(Without fork) | mm | 2590 | 2590 | |
| Overall Width | mm | 1150 | 1150 | |
| Overhead Guard Height | mm | 2070 | 2070 | |
|
|
