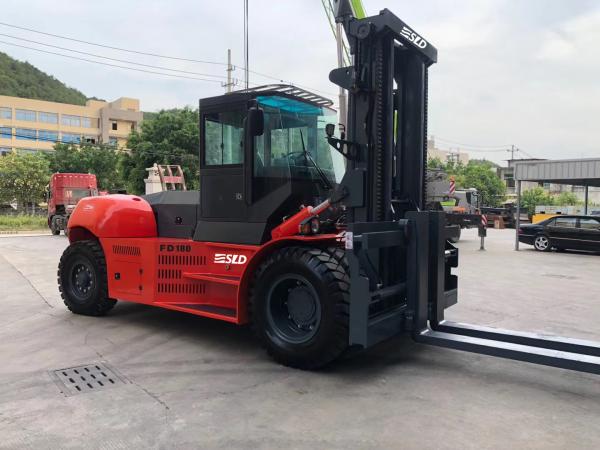

    3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine

    Ask Lasest Price
    Brand Name : SLD
    Model Number : FD180
    Certification : ISO, CE
    Price : USD76,923.00 unit
    Payment Terms : L/C, T/T
    Supply Ability : 100 units per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine

    18 Ton Forklift Combustion Balance Heavy Forklift 16 Ton Diesel Forklift


    Main configurations:

    1. Original Parker hydraulic valve and pump.
    2. Heigh strength 3.5m lifting height mast and 1800mm longer fork.
    3. FOPS/ROPS cab and OPS/ORS adjustable suspension seat.
    4. Standard enclosed operator cabin, air-conditioner, fork positioner.
    5. Optional Cummins engine, HangChi ZF technique transmission.

    6. Full LED light, suitable for port night operation


    Model
    FD180
    Features
    Rated Load
    Kg
    18000
    Load Center
    mm
    900
    Wheelbase
    mm
    3600
    Weight
    Weight
    Kg
    25000
    Chassis
    Tire Specs:Front
    12.00-24
    Tire Specs:Rear
    12.00-20
    Tires Qty,front/rear(X-dreve wheels)
    4/2
    Wheel tread:Front
    mm
    2070
    Wheel tread:Rear
    mm
    2130
    Dimensions
    Mast/carriage tilt angle(front/rear)
    Degree(°)
    6/12
    Mast height(fork lowering)
    mm
    3460
    Mast lifting height
    mm
    3500
    Max.height
    mm
    5220
    height to head guard(height to cab)
    mm
    3220
    Overall height(with forks)
    mm
    7200
    Fork front verticaal sueface to the rear end of the vehicle
    mm
    5400
    Overall width
    mm
    2750
    Fork dimension
    mm
    1800*200*90
    Fork carriage width
    mm
    2500
    Mast min ground(with load)
    mm
    270
    Wheelbase center min ground(with load)
    mm
    310
    Min.turning Radius
    mm
    5050
    Travel speed(with load/without load)
    km/h
    22/30
    Performance
    Max.lifting speed(with load/without load)
    mm/s
    240/300
    traction
    KN
    120
    gradeability(with load/without load)
    %
    20/22
    Driving brake
    Hydraulic clamp disvc
    Engine
    Engine
    brand
    Yuchai Engine
    model
    YC6J175-T302
    Rated Output
    129(Kw)
    Cylinder No
    6
    Others
    Transmission gears(Front/rear)
    2/1

    Note: the above data are subject to change without prior notice.
