Xiamen Sealand Development Co., Ltd.
5 Years
| Ask Lasest Price | |
| Brand Name : | SLD |
| Model Number : | FB120 |
| Certification : | ISO, CE |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 200 units per month |
| Delivery Time : | 15 working days |

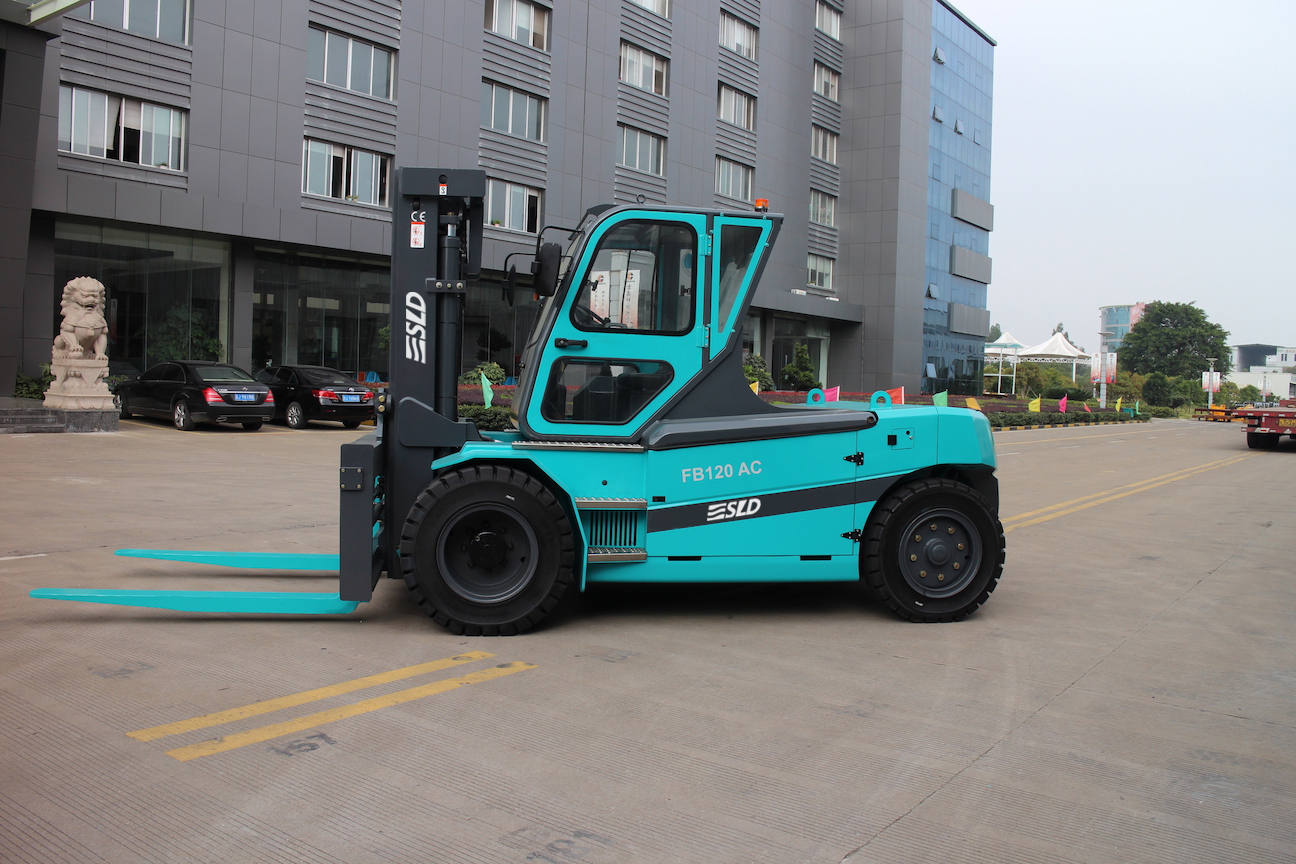

Counter Balanced Electric Forklift 12 Tons AC Driving Type With Solid Tires
Advantages of 12 ton electric forklift, counter balanced electric forklift:
AC Variable Frequency Drive Motor Lowers The Maintenance Cost
Improves Sfficency And Reduce The Energy Consumption At The Same time
By Advanced America CURTIS Inverter Controller
Standard devices of 12 ton electric forklift
Micro-computer controlling of AC driving type
Wide-view mast
Power steering
Neutral-safety switch
Regenerative braking
Big rubber pad
Optional parts of 12 tons country balanced battery forklift
Tires
solid tires environmental protection solid tires
Mast
2 stage free lift mast(VFM) 3 stage free lift mast(VFHM)
Attachments
side shifter, flat clamp, paper roll clamp, rotator, multi-purpose clamp, drum clamp,
carpet boom, boom, lifting hook, widen carriage, fork extension
AC lifting control
| General | |||||
| Model | FB80 | FB100 | FB120 | ||
| Power Type | Electric | Electric | Electric | ||
| Load Capacity | kg | 8000 | 10000 | 10000 | |
| Load centre | mm | 600 | 600 | 600 | |
| Tyre | |||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | Solid Tyre | ||
| Front Tyre | 9.00-16-14PR | 9.00-20-14PR | 9.00-20 | ||
| Rear Tyre | 8.25-15-14PR | 8.25-20-14PR | 8.25-20 | ||
| Overall Dimension | |||||
| Lift Height | mm | 3000 | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1220×150×70 | 1220×175×85 | 1220×175×85 |
| Mast Tilt Angle | F/R | . | 6/10 | 6/10 | 6/10 |
| Mast Lowered Height | mm | 2600 | 2830 | 2830 | |
| Mast Extended Height(with backrest) | mm | 4400 | 4260 | 4260 | |
| Length to face of fork(Without fork) | mm | 3770 | 4412 | 4412 | |
| Overall Width | mm | 2200 | 2250 | 2250 | |
| Overhead Guard Height | mm | 2500 | 2640 | 2640 | |
|
|
