Xiamen Sealand Development Co., Ltd.
5 Years
| Ask Lasest Price | |
| Brand Name : | SLD |
| Model Number : | FB35, CPD35 |
| Certification : | ISO, CE |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 200 units per month |
| Delivery Time : | 15 working days |
Compact Forklift Trucks Strong Hydraulic Warehouse Electric Pallet Jack 1.5 - 3.5 Ton

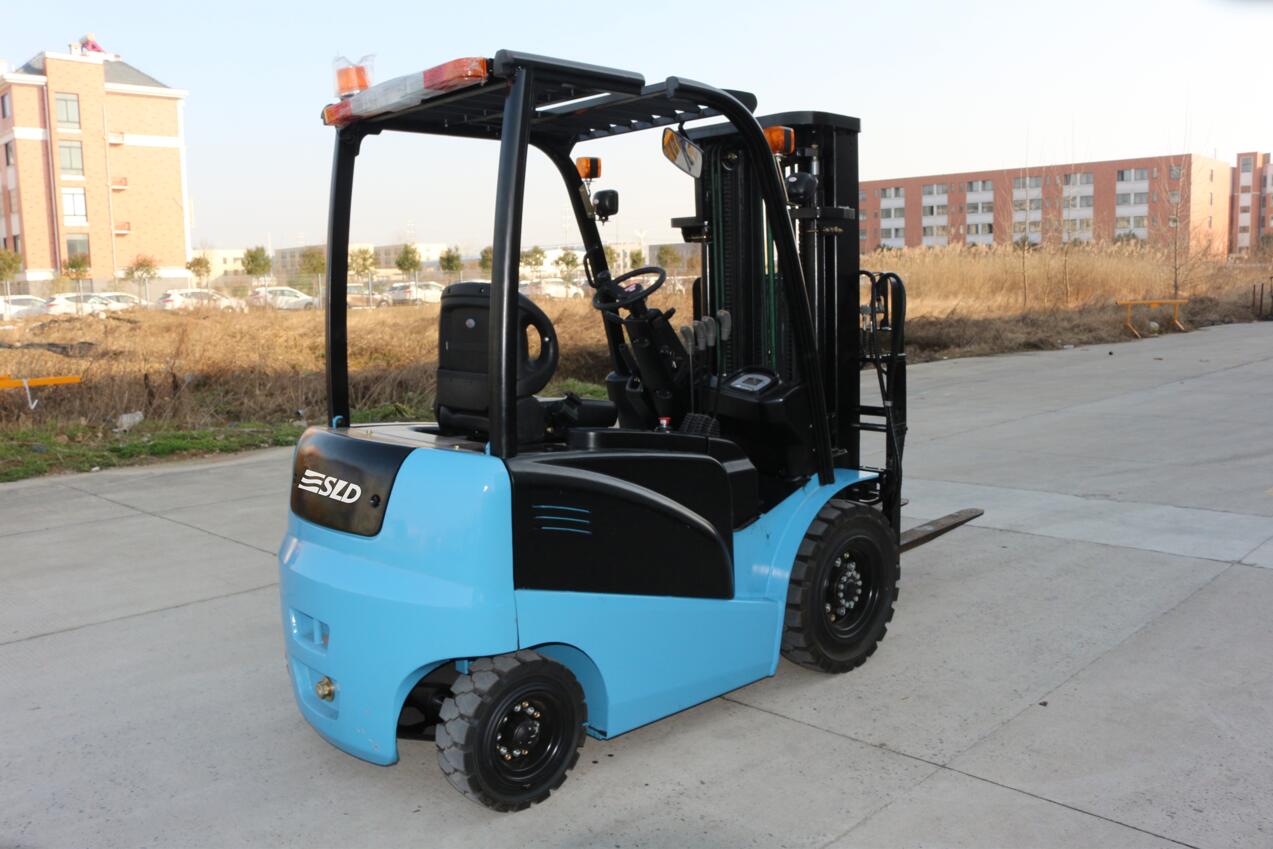

3.5 tons full AC electric forklift 4 wheels
Brand: SLD
Capacity: 3500 kg
Load center: 500mm
2 stage mast lifting height: 3000mm
Fork length:1070mm
Acid-lead battery , 80V/500Ah
Curtis controller
Battery charger
Pneumatic tires
Overhead guard
Led lights and warning light
* Inquiry and consulting support.
* Professional spare parts in stock
* Top brand spare parts supplied.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| General | ||||
| Model | FB30 | FB35 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 3000 | 3500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Front:Pneumatic Tyre Rear:Solid Tyre | ||
| Front Tyre | 28×9-15-12PR | 28×9-15-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8(Solid tyre) | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2115 | 2150 | |
| Mast Extended Height(with backrest) | mm | 4175 | 4175 | |
| Length to face of fork(Without fork) | mm | 2600 | 2600 | |
| Overall Width | mm | 1230 | 1230 | |
| Overhead Guard Height | mm | 2250 | 2250 | |
|
|
